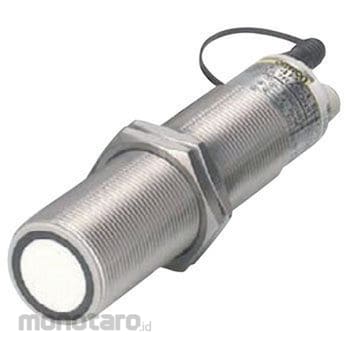

OMRON Ultrasonic displacement sensor E4PA-N
#Grup produk P102363520
Spesifikasi
| Ambient Humidity (% RH) | During use and storage: 35 to 85 (no condensation) |
|---|---|
| Ambient Temperature (°C) | When using: -10 to +55 <br> Storage: -40 to +85 (with no icing or condensation) |
| Analog Output | Current output: 4-20mA (allowable load resistance 500Ω or less) <br> Voltage output: 0-10V (1000Ω or more) |
| Case Material | Stainless steel (SUS303) |
| Detection Distance (mm) | 120 to 2000 |
| Influence of Temperature | ± 1% FS with respect to the output value at + 23 ° C in the range of -10 to + 55 ° C |
| Influence of Voltage | ± 0.5% FS or less within the rated power supply voltage range |
| Insulation Resistance (MΩ) | 50 or more (at 500 VDC) between live parts and case |
| Linearity (% FS) | ± 1 or less |
| Material (Detection Surface) | PBT resin, polyurethane, crow epoxy resin |
| Mutual interference cycle time (ms) | 34 |
| Power Consumption (mW) | 1800 or less |
| Power Supply Voltage (V) | DC10-30 Ripple (pp) 10% or less |
| Protection Class | IEC60529 standard IP65 |
| Repeatability | ± 0.1% FS or less |
| Standard Sensing Object (mm) | Flat plate 100 x 100 |
| Type | Discriminating displacement sensor |
| Type of Connection | 5-pole connector type |
| Vibration Resistance (Destruction) | 10-55Hz Double amplitude 1mm X, Y, Z each direction 2h |
| Withstand Voltage (V) | AC1000 50 / 60Hz 1min Between current-carrying parts and case |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High accuracy detection with wide measuring range. Long range detection, it corresponds to various applications. The measurement range can be easily set with the setting plug with the temperature correction function.Because it is ultrasonic wave, there is no influence by color. Mutual interference prevention function is added, further evolve
