Excellent thermal response due to thin sheet (standard type 1.5 mm).
Flexible.
Less susceptible to high humidity and corrosive environments (weather and chemical resistance).
A power density of 0.6 to 0.8 W/cm2 is usually optimal for many applications, but it varies greatly depending on how the heater is mounted and how the temperature is controlled.

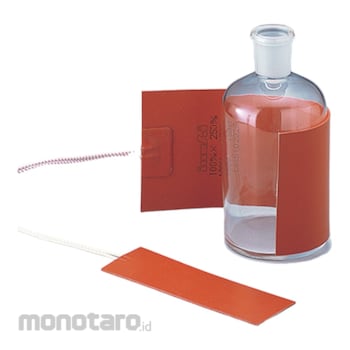

AS ONE Silicon Rubber Heater (Silicon)
#Grup produk P102255762
Sebelum PPN:
Rp1.099.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Insulation Resistance Value Scale (MΩ) | 100 or more/(DC500V) |
|---|---|
| Capacity Tolerance (%) | ±10 |
| Lead Wire Length (mm) | 300 |
| Operating Temperature (°C) | Normal temperature: 200°C, maximum temperature: 250°C |
| Power Density (W) | 0.6 |
| Rated Voltage (V) | 100 (AC) |
| Withstand Voltage | 1500V/1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
NotePlease use it in close contact with the object to be heated.
Since it is not a self-temperature control type, please install a temperature controller etc. according to the situation and use it so that the surface temperature is surely 200 ° C or less.
Not waterproof. Do not drop directly into liquid.
Use with a bending radius of 15 mm or more.
