Lightweight type. Connection port is not a coupler connection, it is a female thread of G1/4. As a accessory, we also have a fitting that converts G1/4 female threads to PT1/4 male threads.
Dokumentasi Produk:
WARRANTY MonotaRO Private Brand

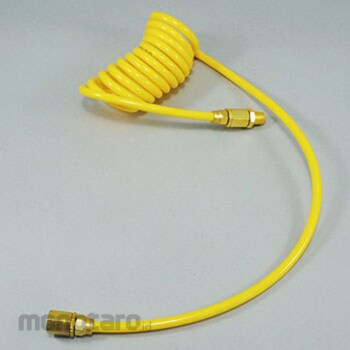

monotaro Air Coil Hose (Screw Type)
#Grup produk P102247231
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Inner Diameter x Outside Diameter (phi mm) | 5 x 8 |
|---|---|
| Accessories | PT 1/4 x PF 1/4 |
| Color | yellow |
| Material | Polyurethane |
| Fluid | air |
| Connection Diameter | G1/4 |
| Maximum Working Pressure (MPa) | 0.8 |
| Dimension D (mm) | 100 |
| Dimensions e (mm) | 51 |
| Dimensions b (mm) | 500 |
| Inner Diameter (phi mm) | 5 |
| Operating Temperature Range (°C) | -20 to 60 |
| Outer Diameter d (mm) | 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Please do not use for other fluids. * It is screw connection. Since couplers are not attached, please be careful.Dokumentasi Produk
