Deep Groove Ball bearings that are most widely used in bearings. Deep Groove Ball bearings are deep Grooves with arcuate tracks for both inner and outer races, and can receive Radial load, axial load in both directions, or composite load as a combination thereof, and it is also suitable for high-speed rotation. In the shield type, a metal shield plate is fixed to the outer ring, and a labyrinth clearance with the V Groove of the inner ring seal surface is formed.
Dokumentasi Produk:
WARRANTY MonotaRO Private Brand

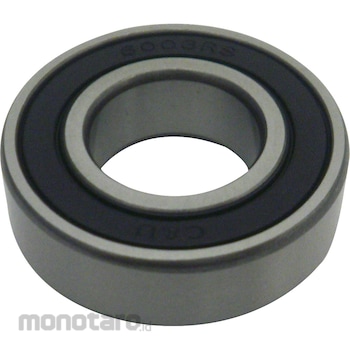

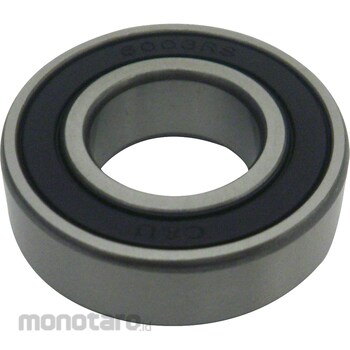

monotaro Ball Bearing 6000 Series 2 RS (Both Side Contact Rubber Seal Type) (Laher)
#Grup produk P102238332
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Allowable Grease Lubrication Rotation Speed (rpm) | 21000 |
|---|---|
| Body Material | High Carbon chromium bearing steel |
| Chamfer Dimensions r (mm) | 0.3 |
| Inside Diameter d (phi mm) | 10 |
| JIS Grade | 0 |
| Load Direction | Radial |
| Outer Ring Type | flat |
| Outside Diameter D (phi mm) | 26 |
| Rolling Element Material | High Carbon chromium bearing steel |
| Shield Form | Both side contact rubber seal type |
| Standard Dynamic Load Rating Cr (N) | 4550 |
| Standard Static Rating Load Cor (N) | 1970 |
| Track Ring Form | Deep Groove Ball bearing |
| Track Ring Line Number | Single row |
| Width B (mm) | 8 |
