Deep groove ball bearings that are most widely used in bearings. Deep groove ball bearings are deep grooves with arcuate tracks for both inner and outer races, and can receive radial load, axial load in both directions, or composite load as a combination thereof, and it is also suitable for high-speed rotation.
Dokumentasi Produk:
WARRANTY MonotaRO Private Brand

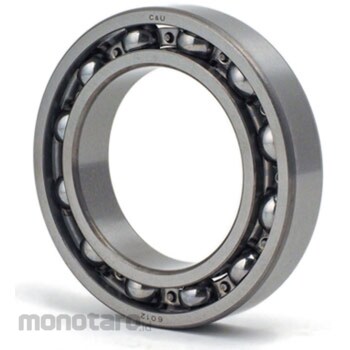

monotaro Deep Groove Ball Bearings 6000 Series Open Type
#Grup produk P102230909
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Allowable Grease Lubrication Rotation Speed (rpm) | 6700 |
|---|---|
| Allowable Oil Lubrication Rotation Speed (rpm) | 8000 |
| Body Material | High carbon chromium bearing steel |
| Chamfer Dimensions r (mm) | 1.1 |
| Inside Diameter d (phi mm) | 60 |
| JIS Grade | 0 |
| Load Direction | radial |
| Outer Ring Type | flat |
| Outside Diameter D (phi mm) | 95 |
| Rolling Element Material | High carbon chromium bearing steel |
| Shield Form | Open form |
| Standard Dynamic Load Rating Cr (N) | 31660 |
| Standard Static Rating Load Cor (N) | 24220 |
| Track Ring Form | Deep groove ball bearing |
| Track Ring Line Number | Single row |
| Width B (mm) | 18 |
