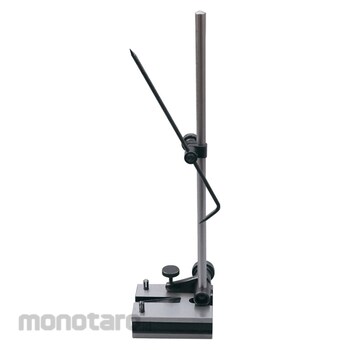

Kennedy Surface Gauge With 9Inch & 12Inch Pillars
#Grup produk P102202968
Kondisi Barang:
Authorized Partner
Spesifikasi
| Includes | (2) Pillars Adjustable Attachment Double Ended Scriber Machined Base |
|---|---|
| Overall Depth | 80mm |
| Pillar Height | 230mm 305mm |
| Dimensions | 350x63x80 |
| Overall Width | 63mm |
| Overall Length | 350mm |
| Tip Material | Steel |
| Part Number | KEN5184300K |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Used for marking out lines parallel to a true edge or groove, and also to mark the centre of round bars. Machined base, two pillars, a double ended scriber and an adjustable attachment for holding scribers up to 1/4 Inch diameter on to the pillar. The base has a machined V-groove for use on pipes and round bar and two frictionally held pins which are used as a guide when sliding along the true edge or groove. The angle of the pillar can be finely adjusted with the use of a knurled thumb screw. Supplied with two pillars. Base dimensions: 80 x 30mm.
