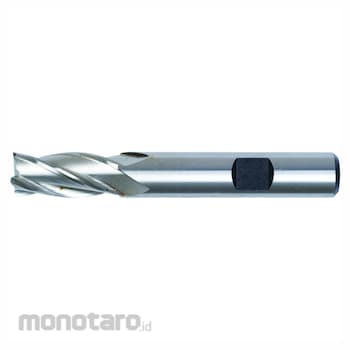

SwissTech Weldon Std End Mill-8% Co
#Grup produk P102133866
Spesifikasi
| Plunge Type | Centre Cutting |
|---|---|
| Finish/Coating | Uncoated |
| Flute Type | Helical |
| Series | 09 |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 4 |
| Shank type | Weldon Flat |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | h6 |
| Standards Met | DIN 1835B DIN 844 |
| Material Grade | M42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Series 09 - Regular Series Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter: 3-6mm to +0.04 -0.0. 8-20mm to +0.05 -0.0. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
