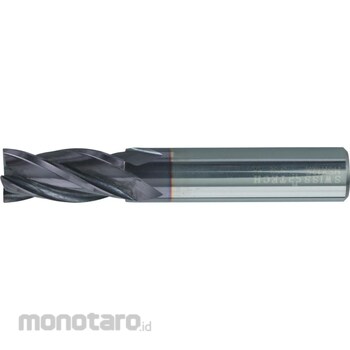

SwissTech ST/SH Short 4FL End Mill Q-Coat
#Grup produk P102133279
Sebelum PPN:
Rp1.099.900 - Rp7.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Standards Met | DIN 844 |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Series | 66 |
| Number of Flutes | 4 |
| Cutter Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Shank type | Plain Round |
| Helix Angle | 30 Degree |
| Material | Solid Carbide |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Series 66 - Short Series Dimensions to DIN 844. Centre cutting. To Manufacturers standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat. 'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
