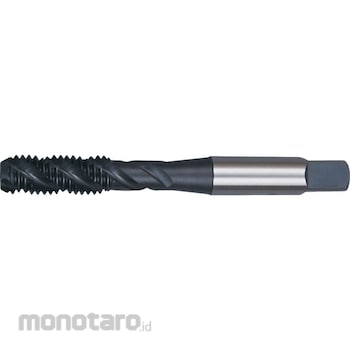

Sherwood Conduit Spiral Flute Tap
#Grup produk P102130018
Spesifikasi
| Material Grade | M2 |
|---|---|
| Thread Size | M16 |
| Overall Length | 102mm |
| Class of Fit | 6H |
| Tap Type | Spiral Flute |
| Thread Standard | Metric Coarse |
| Finish/Coating | Steam Tempered |
| Square Width | 10mm |
| Thread Direction | Right Hand |
| Application Materials | Aluminium Cast Iron Stainless Steel Steel |
| Dimensions Standard | ISO 529 |
| Helix Angle | 45 Degree |
| Material | High Speed Steel |
| Shank Diameter | 12.5mm |
| Pitch | 1.5 |
| Thread Length | 32mm |
| Number of Flutes | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
IS0 529 - Spiral Flute. Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others. Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series. Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results, dissipating the heat build-up associated with these applications. Thread Forms are Class 2 medium fit tolerance.
