SwissTech 4FL Carbide Plain Shank End Mills
#Grup produk P102129449
Spesifikasi
| Flute Length | 12(2)mm 14mm 16mm 20(2)mm |
|---|---|
| Shank Diameter | 10mm 3mm 4mm 5mm 6mm 8mm |
| Finish/Coating | Uncoated |
| Number of Flutes | 4 |
| Cutter Diameter | 10mm 3mm 4mm 5mm 6mm 8mm |
| Milling Application | Finishing Profiling Semi-finishing Slotting |
| Cutter Diameter Tolerance | js12 |
| Product Number | E5SET00077 |
| Helix Angle | 30 Degree |
| Application Materials | Alloy Steel Aluminium Carbon Steel Cast Iron Copper Stainless Steel |
| Material Grade | Micrograin |
| Number of Pieces | 6 |
| Shank Diameter Tolerance | h6 |
| Overall Length | 32mm 40mm 50(2)60mm 70mm |
| Material | Solid Carbide |
| Shank type | Plain Round |
| Plunge Type | Centre Cutting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

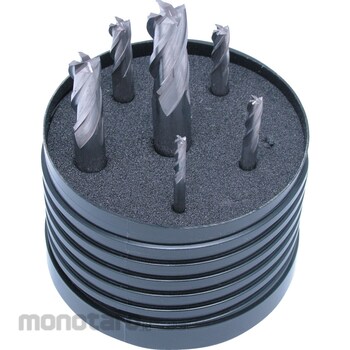

6 Piece Sets Dimensions to DIN 844. Cutting diameter to js12. Shank diameter to h6. Contents: 3, 4, 5, 6, 8 and 10mm. SwissTech carbide cutters are specifically engineered to be used in CNC machine centres. The rigidity and integrity of the machine tool is paramount to the performance of this type of cutter. Carbide cutters are used mainly at high speed and feed rates. The increased temperatures associated with cutting at such high rates are absorbed by the carbide, which will retain its strength and hardness. SwissTech carbide cutters can be used across a range of materials.
