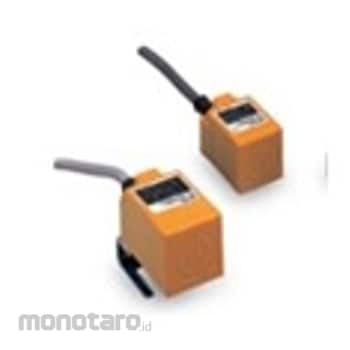

OMRON Rectangular Standard Proximity Sensor
#Grup produk P102127247
Spesifikasi
| Item Code | TLNN1251M |
|---|---|
| Accessories | Mounting hardware, mounting screws (M4 x 30), instruction manual |
| Action Mode | NO (when approaching detection object) |
| Ambient Humidity (%RH) | During operation and storage: 35 to 95 each (no condensation) |
| Ambient Temperature (°C) | During operation and storage: -25 to +70 each (no freezing or condensation) |
| Cable Length (m) | 2 |
| Case Material | Heat resistant ABS |
| Connection Method | cord drawer type |
| Control Output | Switching capacity: 100mA or less (at 12V DC), 200mA or less (at 24V DC), residual voltage: 1V or less (at 200mA) |
| Current Consumption (mA) | 8 or less (at DC12V), 15 or less (at DC24V) |
| Detection Distance (mm) | 10±10% |
| Detection Target | Magnetic metals (Non-magnetic metals will reduce the sensing distance.) |
| Effect of Temperature | ±10% or less of detection distance at +23℃ within the temperature range of -25 to +70℃ |
| Effect of Voltage | Within ±10% of the rated power supply voltage, within ±2.5% of the sensing distance at the rated power supply voltage |
| Head Shape | corner |
| Hysteresis (%) | 15 or less of detection distance |
| Indicator Light | Detection indicator light (red) |
| Insulation Resistance (MΩ) | 50 or more (at DC500V megger) between all charging parts and the case |
| Material (Detection Surface) | Heat resistant ABS |
| Operating Voltage Range (V) | DC10 to 30 |
| Output | DC 3-wire NPN |
| Power Supply Voltage (V) | DC12 to 24 Ripple (p-p) 10% or less |
| Protection circuit | Reverse connection protection, surge absorption |
| Protective Structure | IEC standard IP67 |
| Response Frequency (Hz) | 500 (average value) |
| Sensor Shape | square |
| Setting Distance (mm) | 0-8 |
| Shape | □30 |
| Shield Shape | non-shielded |
| Shock Durability (m/s²) | 2 |
| Standard Detection Object (mm) | Iron 40×40×1 |
| Vibration Resistance (Durability) | 10 to 55Hz, double amplitude 1.5mm, 2h each in X, Y, and Z directions |
| Withstand Voltage (V) | AC1000 50/60Hz 1min Between all live parts and case |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Rectangular Standard Proximity Sensor, Sensing distance 10 mm, NO, DC 3-wire, NPN
