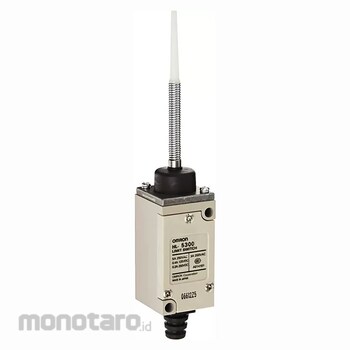

OMRON Limit Switch Coil Spring
#Grup produk P102127025
Spesifikasi
| Item Code | HL5 5427F |
|---|---|
| Actuator Type | Coil spring type |
| Allowable Operating Speed (mm-m/s) | 5 to 0.5 |
| Allowable Operation Frequency (times/minute) | (mechanical)120 (electrical)30 |
| Ambient Humidity (%RH) | 35 to 95 |
| Contact Resistance for Initial Value (miliΩ) | 25 or less |
| Earth Terminal | none |
| Force Required for Operation (OF) (N) | max 1.47 |
| Impact Resistance Durability (m/s²) | 1000 |
| Inrush Current (A) | (Normally closed) Max. 24, (Normally open) Max. 12 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Mechanical Durability | 10 million times or more (subject to certain conditions) |
| Operating Ambient Temperature (°C) | -10 to 65 (but no freezing) |
| Protection Class | IP65 |
| Purpose | Ideal for printing machines, molding machines, light machinery, etc. |
| Rated Frequency (Hz) | 50/60 |
| Shock Resistance Malfunction (m/s) | 300 |
| Vibration Resistance (Malfunction) | 10~55Hz double vibration line 1.5mm |
| Withstand Voltage | (Between terminals of the same polarity) AC1000V 50/60Hz 1min (Between live metal part and earth) AC1500V 50/60Hz 1min (Between each terminal and non-current metal parts) AC1500V 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Limit Switch Coil Spring
