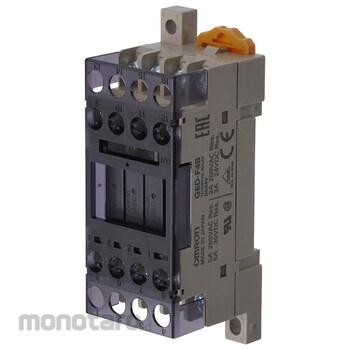

OMRON Terminal Relay, Relay Output
#Grup produk P102126974
Spesifikasi
| Item Code | G6D41006H |
|---|---|
| Ambient Humidity (%RH) | 45 to 85 |
| Classification | relay output |
| Coil Resistance (ohm) | 2880 |
| Coil Type | Non Latching |
| Coil Voltage (V) | DC 24 |
| Coil current (mA) | 8.3 |
| Contact Configuration | 1a×4 |
| Contact Form | SPST-NO (1 Form A) x 4 |
| Contact Rating Current (A) | 3 |
| Contact Resistance (miliΩ) | 100 or less (DC5V 1A) |
| Electrical Durability | AC250-3 (Resistive Load (V-A)) 100,000 times or more, DC 30-3 (Resistive Load (V-A)) 100,000 times or more (Opening/closing frequency 1800 times/h) |
| Electrical Durability (V-A) | AC250-3 (Resistive Load (V-A)) 100,000 times or more, DC 30-3 (Resistive Load (V-A)) 100,000 times or more (Opening/closing frequency 1800 times/h) |
| Failure Rate P Level (V-mA) | DC5-10 (reference value: when opening/closing frequency is 120 times/min) |
| Features | Lighted Indicator, Socket Included |
| Impact Resistance Durability (m/s²) | 500 |
| Impact Voltage (V) | Between coil and contact: 4000 (1.2×10μs) |
| Insulation Resistance (MΩ) | 1000 or more (at DC500V mega) |
| Kinds | terminal relay |
| Maximum Switching Capacity (VA/W) | (Reference value) 1250-150 |
| Maximum Value of Contact Current (A) | 5 |
| Maximum Value of Contact Voltage (V) | AC250, DC30 |
| Mechanical Durability | 20 million times (opening/closing frequency 18,000 times/h) |
| Mounting Type | DIN Rail |
| Must Operate Voltage (V) | 16.8 DC |
| Must Release Voltage (V) | 2.4 DC |
| Operate Time (ms) | 10 |
| Operating Ambient Temperature (°C) | -25 to +55 (but no freezing) |
| Operating Temperature (°C) | -25 ~ 55 |
| Operating Time (ms) | 10 or less (23℃) |
| Output | relay output |
| Package | Bulk |
| Rated Current (A) | 5 |
| Rated Current (mA) | 10.5 |
| Rated Voltage (V) | DC24 |
| Recovery Time (ms) | 10 or less (23℃) |
| Relay Type | General Purpose |
| Release Time (ms) | 15 |
| Resistive Load (V-A) | AC250-3, DC30-3 (cosΦ=1) |
| Series | G6D-4 |
| Shock Resistance Malfunction (m/s) | 100 |
| Storage Temperature Range (°C) | -25 to +55 (but no freezing) |
| Switching Voltage (V) | 250 AC, 30DC - Max |
| Termination Style | Screw Terminal |
| Vibration Resistance (Durability) | 10~55~10Hz Single amplitude 0.75mm (Double amplitude 1.5mm) |
| Vibration Resistance (Malfunction) | 10~55~10Hz Single amplitude 0.75mm (Double amplitude 1.5mm) |
| Withstand Voltage (V/minute) | Between coil and contacts: AC2000 50/60Hz, between contacts of the same polarity: AC750 50/60Hz |
| types | terminal relay |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Terminal Relay, Relay Output
