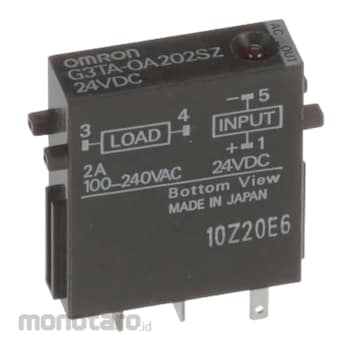

OMRON I/O Solid-state Relay
#Grup produk P102126929
Spesifikasi
| Item Code | G3TA1032E |
|---|---|
| Ambient Humidity (%RH) | 45 to 85 |
| Applicable Load of Output (A-V) | 2-AC100 to 240 |
| Case Color | black |
| Input Impedance (ohm) | 1.7k±20% |
| Installation Method | photo triac |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Leakage Current (mA) | 5 or less (AC200V) |
| Load current (A) | 0.05 to 2 (at 60℃) |
| Load voltage (V) | AC75 to 264 |
| Module | output module |
| Operating Ambient Temperature (°C) | -30 to +80 (no freezing or condensation) |
| Operating Time (ms) | 1/2 cycle of load power supply cycle + 1 or less |
| Operating Voltage (V) | DC19.2 or less |
| Operating Voltage Range (V) | DC19.2 to 26.4 |
| Operation Indicator light | Yes |
| Output on Voltage Drop (V) | 1.6 (RMS) or less |
| Rated Load Voltage (V) | AC100 to 240 |
| Rated Voltage (V) | DC24 |
| Recovery Time (ms) | 1/2 cycle of load power supply cycle + 1 or less |
| Return Voltage | DC2V or more |
| Shock Resistance (m/s2) | 2 |
| Storage Temperature Range (°C) | -30 to +100 (no freezing or condensation) |
| Surge-on Current Capacity (A) | 30 (60Hz, 1 cycle) |
| Vibration Resistance | 10-55-10Hz, single amplitude 0.75mm (double amplitude 1.5mm) |
| With or Without Zero Cross Function | Yes |
| Withstand Voltage (V/minute) | Between input and output: AC4000 50/60Hz 1min |
| types | solid state relay |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
I/O Solid-state Relay
