Wirelessly Transfer Logging Data from a LR5000 Series Data Logger
The Hioki LR5092 is a data collector for wirelessly collecting data from the LR5000 Series Data Loggers. Simply dock the Data Collector onto the data logger to transfer data using infrared, then upload the data to a PC using USB or SD card. A maximum of 60,000 data x 16 channels can be collected up to 500 times on 2 batteries.

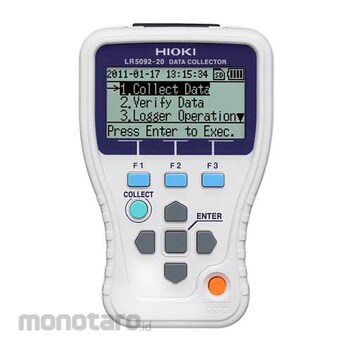

Hioki Data Collector
#Grup produk P102091654
Kondisi Barang:
Spesifikasi
| Communication Method | Between data loggers: Infrared communications; With PC: USB 2.0 |
|---|---|
| Internal Memory | 60,000 data elements x16ch (instantaneous value mode); 15,000 data elements x16ch (statistical value mode); Data logger settings (max. 1 set) |
| Removable Storage Media | SD memory card; Save data and max. 16 items configuration |
| Power Supply | DC 3 V (LR6 (AA) Alkaline battery x2); USB bus power (12 hours or 500 times of data collection) |
| Dimension (WxHxD) | 91x141x31 mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Bring the data logger LR5000 series back from the field and transfer data to a PC- Save data from data loggers in the built-in memory or on an SD card (LR5092-20)
- Send settings from a PC to a data logger
- Use the included software to easily graph and print data
- Use the included software to calculate maximum, minimum, and average values and more between cursors
