Usage:
Connection between tube and tube (same diameter)

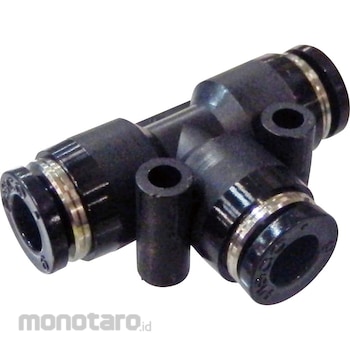

PISCO Union-T
#Grup produk P102034651
Spesifikasi
| Material | Metal body: brass + nickel plated Resin body: polybutylene terephthalate (PBT) Release ring: polyacetal (POM) |
|---|---|
| Shape | Union tee |
| Weight (g) | 11 |
| Maximum Working Pressure (MPa) | 1.0 |
| Dimensions e (mm) | 20.05 |
| Dimensions b (mm) | 20.1 |
| Dimensions c (mm) | 17 |
| Fluid | Air / water |
| Dimension F2 (mm) | 16 |
| Dimensions p (mm) | 13 |
| Vacuum Pressure (kPa) | -100 |
| Tubes Outside Diameter D (phi mm) | 6 |
| RoHS Directive | Available |
| Dimension F1 (mm) | 8 |
| Dimensions d (mm) | Φ3.5 |
| Effective Section Area (mm²) | 12.5 |
| Operating Temperature Range (°C) | 0 - 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
