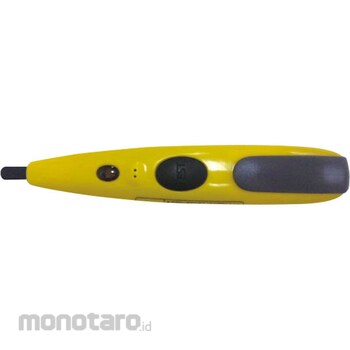

Hasegawa AC Low Voltage Detector
#Grup produk P102023266
Spesifikasi
| Overall Length (mm) | 130 |
|---|---|
| Weight (g) | 22 |
| Leak Current | Detection part and between grip parts (between grips) /100microA and below |
| Battery Life | Continuous use state 10 hours, Left alone state 1.5 years |
| Batteries | Alkaline button battery LR44(1.5V)x2 |
| Opreration Display | Light emitting: comfirmation capable by looking at the red intermittent light emitter 8000Lx's brightness Sound emitting: intermittent sound emmision of sound, 30 cm apart over 50db |
| Working Voltage Range (V) | AC 50 - 600 |
| Color (Body) | Yellow |
| Operating Voltage (V) | Highest level of sensitivity: Below AC40V, factory loading time: AC40V+/-10V (company specific standard insulated wire(600V-IV2mm<sup>2</sup>) with the detection part touching |
| Insulation Resistance | Between detection part and grip part: Over 100Mohm at 500V megger usage |
| Dielectric Strength | Between detection part and grip part /2000V-1 minute intervals |
| Impulse Resistant | Between detection part and grip part/8000V-each plus and minus 10 times (IEC61010-1 CATIV equivalent) |
| Testing Ability | The inner circuit and battery voltage can be checked with the test button. |
| Cycle Frequency (Hz) | 50/60 common use |
| Model | Only for low voltage alternating-current circuits |
| Operating Temperature Range (°C) | 0 - +40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Conductive rubber provides A high level of safety. - Conductive rubber is adopted for Contact tip, which prevents accidents due to A short-circuit.
- It is possible to adjust sensitivity.
- It is possible to use It according to the intended purpose, by adjusting the sensitivity volume knob.
- A detector with minimum sensitivity variance between bare and covered parts is adopted.
