- Bargraph to display insulation
- Displays the value of external AC voltage along with flashing symbol.
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
- Trac-Lok mode to conserve battery life on insulation and continuity tests.
- Live circuit warning beeper.
- Releasing the test button automatically discharges the charges stored in the circuit under test.
- Backlight function to view the test results in dimly lit areas.

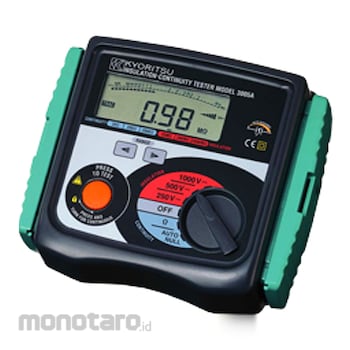

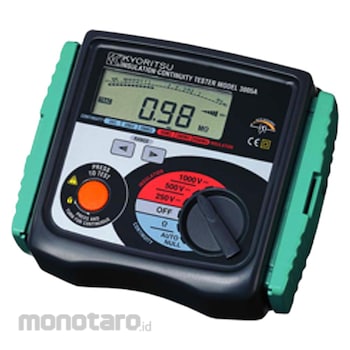

KYORITSU Digital Insulation Tester (Pengukur Isolasi)
#Grup produk P101550848
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp5.399.900 - Rp6.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage Accuracy | ±5%rdg±3dgt |
|---|---|
| Contents Included | 7122B (Test leads) Pouch for test leads; 8923 (F500mA/600V fuse) x2; R6 (AA) x8; Shoulder Strap; Instruction Manual |
| Continuity Test Accuracy | ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200Ω/2000Ω) |
| Continuity Test Measurement Current (mA) | min. DC 200 |
| Continuity Test Measuring Range (ohm) | 20/200/2000 |
| Continuity Test Output Voltage on Open Circuit (V) | DC 7-12 |
| EMC standard | IEC 61326-1 |
| IP Rating | IEC 60529-IP54 |
| Insulation Resistance Accuracy | ±1.5%rdg±5dgt (20MΩ/200MΩ). ±10%rdg±3dgt (2000MΩ) |
| Insulation Resistance Measuring Range (MΩ) | 20/200/2000 |
| Insulation Resistance Nominal Current (mA) | min. DC 1 |
| Insulation Resistance Outpur Short Circuit Current (mA) | Approx. DC 1.5 |
| Insulation Resistance Output Voltage on Open Circuit | Rated test Voltage +20%, 0% |
| Insulation Resistance Test Voltage (V) | 250/500/1000 |
| Power Supply | R6 (AA) (1.5V) x8 |
| Resistance Range (ohm) | 20/200/2000 |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2. IEC 61010-2-031 IEC 61557-1/2/4 |
