monotaro PM Type Quick Coupler (Kopler Selang)
#Grup produk P101001097
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Suitable fluid | Air |
|---|---|
| Thread Size | R1/4 |
| Type of Connection | Male screw |

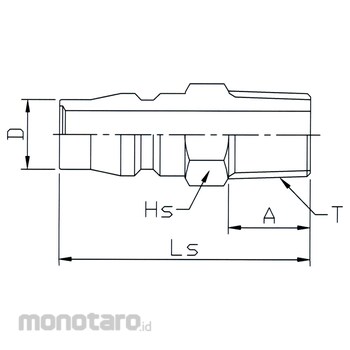

| Dimension A (mm) | 13 |
| Socket or Plug | Plug |
| Valve Structure | With valve |
| Dimension D (mm) | Φ11 |
| Dimension Hs (mm) | 14 |
| Dimension Ls (mm) | 40 |
| Dimensions t (mm) | PT1/4 |
| Material (Main Unit) | Steel (chrome plating) |
| Mating Connection Size | Rc1/4 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | -20～+70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Since the automatic opening / closing valve built in the socket opens and closes according to the attachment and detachment of the plug, it is not necessary to manipulate the original valve each time when plug is removed. Air tools, various air piping, pneumatic equipment, etc.
