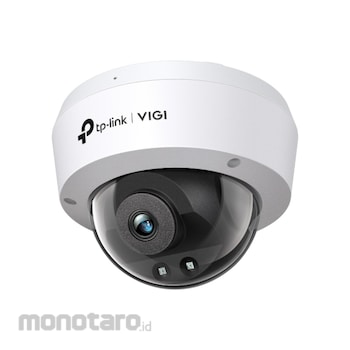

VIGI Dome Camera VIGI C220I 4mm 1unit

Name: VIGI Dome Camera VIGI C220I 4mm 1unit
Brand: VIGI
SKU: S054089174
Price: 565989 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S054089174

VIGI

Wishlist

Spesifikasi Produk

Model Number	VIGI C220I
Unit	1unit
Alarm Linkage	Message Push
Aperture	F2.0
API	Open Network Video Interface (Profile S)
Audio Bit Rate (kbps)	64 (G.711 alaw)
Audio Compression	Yes
Audio Input	Yes
Audio Sampling Rate (kHz)	8
Bit Rate Control	CBR, VBR
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Certifications	CE, NTRA, VCCI, BSMI
Client	VIGI App, VIGI Security Manager, Web UI
Cloud	Yes
Day/Night Mechanism	IR Cut Filter
Focal Length (mm)	4
FOV (°)	Horizontal FOV: 74.6, Vertical FOV: 41.3, Diagonal FOV: 88.1
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Day / Night Switch	Unified/Scheduled/Auto
DORI Distance (m)	Detect: 60 (198ft); Observe: 25 (83ft); Recognize: 12 (40ft); Identify: 6 (20ft)
Environment Noise Filtering	Yes
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Image Parameters Switch	Yes
Image Sensor	1/3inch Progressive Scan CMOS
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
IR LED (nm)	Quantity: 2; Range: 30m; Wavelength: 850
Lens Mount	M12
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1920x1080, 1280x960, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Material	Plastic
Maximum Resolution	1920x1080
Minimum Illumination	Color: 0.01 Lux; 0 Lux with IR
Net Weight (kg)	0.27
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
ONVIF	Yes
Operating Humidity (%)	95 or Less (Non-Condensing)
Operating Temperature (°C)	-30 to 60
OSD Setting	Yes
Output Notification	Message Push
Package Content	VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Power Supply	PoE: 802.3af/at, class 0, Maximum 5.5W
Privacy Mask	Up to 4 Masks
Product Dimensions (inch)	4.53x4.53x3.39
Product Dimensions (mm)	115x115x86
Protection	IP67 Waterproof, IK10 Vandal Proof
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP
Range (°)	Pan: 0 to 355; Tilt: 0 to 75
ROI	1 Region
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Shutter Speed (s)	1/3 to 1/10000
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Slow Shutter	Yes
Smart Event	Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection
SNR (dB)	≥52
Storage Humidity (%)	95 or Less (Non-Condensing)
Storage Temperature (°C)	-40 to 60
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576, 640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Type	Fixed Focal Lens
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
Web Browser	Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
Wide Dynamic Range	DWDR
Berat (Kg)	0.4
Tanggal Produk Terdaftar	12 January 2026
Terakhir Diperbaharui	06 February 2026
