The new TFM228/ 428 series LCD thermostats are designed for ON/ OFF control valve, and fan in 2/ 4-pipe application.
The thermostat operates an ON/ OFF control valve to provide control at the desired setpoint temperature. Fan-coil thermostat models are available with constant fan operation, and have a three-speed switch comes with low, medium and high settings.
The TFM228NNFH/U is model without 3 speed fan contact, which commonly use for simple ON/ OFF control in certain application.

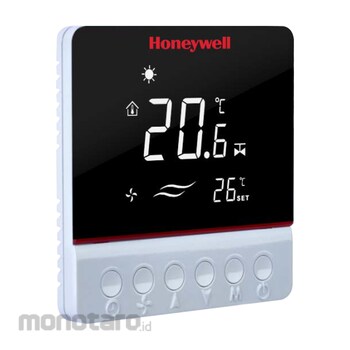

HONEYWELL LCD Digital On/Off Thermostat TFM228N/U 1pc
Rp832.389 Rp749.900
Spesifikasi Produk
| Model Number | TFM228N/U |
|---|---|
| Unit | 1pc |
| Power Rating (VAC) | 90 to 264 |
| Frequency (Hz) | 50/60 |
| Display Range (°C) | 0 to 60 (Step 0.1) |
| Accuracy (°C) | ±0.5 (at 25) ; ±1 (at 21) |
| Control Mode | ON/ OFF SPST |
| Output | SPST for control valves |
| Electrical Rating | For Fan Current 5(2); 5 = When the load of the thermostat is resistance; 2 = When the load of the thermostat is inductance |
| Wiring | 4 or 7 screw –in terminals per unit, capable of accepting 18~26AWG wires per terminal |
| Operating Temperature (°C) | 5 to 45 |
| Storage Temperature (°C) | -20 to 55 |
| Humidity Range (%RH) | 5 to 95 |
| Pipe | 2 Pipes |
| Switch | ON/OFF, 3 Speed Fan |
| Remote Temperature Sensor | NTC 10k |
| Auto Cycle Time | Greater than 100000 cycles (all loads) |
| Manual Cycle Time | Greater than 10000 operations for all manually operating switches. |
| High Accuracy Thermostat | Yes |
| Occupancy Mode | No |
| Remote Sensor Terminal | No |
| Berat (Kg) | 4.5 |
| Tanggal Produk Terdaftar | 29 April 2025 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
-Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- New attractive modern styling design makes the thermostat harmonized with any interior decoration.- All in one design, easier to install or service. FUZZY logic design, easier to operate.
- Easy-to-see LCD screen. 3-Speed Fan Controls.
- Heat/Cool mode adjustable. ℃ or ℉ selectable.
- High voltage input (90~264Vac) to suit all regions
- Separate terminals for remote sensor and key card. Ability to display temperature sensor failure for easier troubleshooting.
- Suitable for use with Honeywell all series ON/ OFF control valves.
