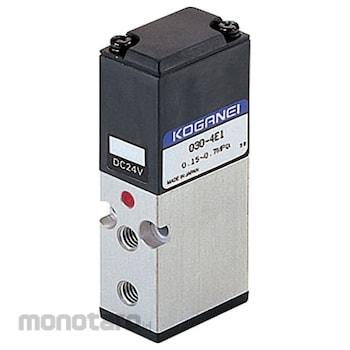

KOGANEI Solenoid Valve 030 Series Direct Acting 030E1 DC24V 1pc

Name: KOGANEI Solenoid Valve 030 Series Direct Acting 030E1 DC24V 1pc
Brand: KOGANEI
SKU: S043749034
Price: 954489 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S043749034

Wishlist

Spesifikasi Produk

Model Number	030E1 DC24V
Unit	1pc
Assured Pressure Resistance (MPa)	1.05
Dimension A (mm)	56
Dimension B (mm)	49
Dimension C (mm)	63
Dimensions d (mm)	53.2
Flow Characteristics	Sonic conductance C (dm³/(s.bar)) 1 (P) → 2 (A) 0.12, 2 (A) → 3 (R) 0.16, effective cross-sectional area (Cv value) (mm²) 1 (P) → 2 (A) 0.6 (0.03), 2 (A) → 3 (R) 0.8 (0.04)
Lead Wire Length (mm)	300
Lubrication	Unnecessary
Maximum Operating Frequency (Hz)	5
Mounting Side	freedom
Number of Ports	3
Operating Pressure Range (MPa)	(Atmosphere and fluid used) 5-50
Operating Temperature Range (°C)	5 to 50
Piping Connection Size	M5x0.8
Response Time (s)	(When ON/OFF) 0.01/0.025 or less
Shock Resistance (m/s²)	117.7
Suitable fluid	Air
Terminal Connection	Grommet type
Type of Acting	Direct Acting Type
Voltage (V)	DC 24
M Code	54949536
Berat (Kg)	0.1
