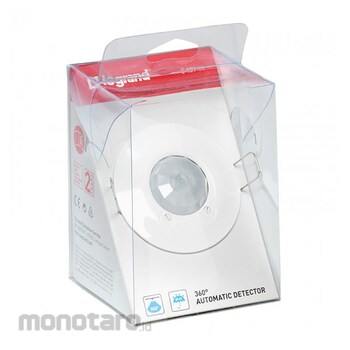

Legrand Motion Sensor 048944 IP41 White 360degrees 1pc

Name: Legrand Motion Sensor 048944 IP41 White 360degrees 1pc
Brand: Legrand
SKU: S003559352
Price: 887889 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S003559352

Wishlist

Spesifikasi Produk

Model Number	048944
Unit	1pc
Storage Temperature (°C)	-20-70
Terminal Capacity (mm²)	2.5-2.5
Label Space/Information Surface	No
Nominal Voltage (V)	240-240
Width (mm)	87
Height (mm)	87
Depth (mm)	50.5
Built-in Depth (mm)	37
Connection Cable Length (mm)	-
Operating/Setting Temperature (°C)	-10-35
Material	Plastic
Antimicrobial Treatment	No
Transparent	No
Halogen Free	Yes
Surface Protection	Untreated
Surface Finishing	Glossy
Color	White
IP Protection	IP41
Impact Protection (IK)	IK04
Frequency (Hz)	50-60
Berat (Kg)	0.2
Tanggal Produk Terdaftar	27 September 2017
Terakhir Diperbaharui	25 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Motion sensors for 1 circuit - motion sensors for passage areas without natural light
- Automatic on/off
- Manual adjustment of light level threshold and time delay via potentiometer
Ideal for passage areas PIR IP 20 ceiling - mounting motion sensor, 360°
- Blister
- Range 8 m
- Recommended Fixing height : 2.5 m
- 3 - wire with neutral
- Light level threshold : 10 to 1275 lux
- Adjustable time delay : 10 s to 10 min
- Standby consumption : 0,75 W
- Optimum distance between 2 sensors : 6 m
- Fixes directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
