The IR-CZ series is a stationary radiation thermometer with an integrated digital temperature display and external measurement output.
A radiation thermometer that can measure the temperature of polyester film.
*When ordering a product number that includes (a complete set of traceability documents), please specify the name to be written on the documents.
*Please note that products with (complete set of traceability documents) cannot be canceled or returned after ordering.
*For products that include (a complete set of traceability documents), the manufacturer will inspect and calibrate the product before including the documents.
*Please note that specifications and appearance may be changed without notice for improvement purposes.
*Please check the manufacturer's website for the latest information.

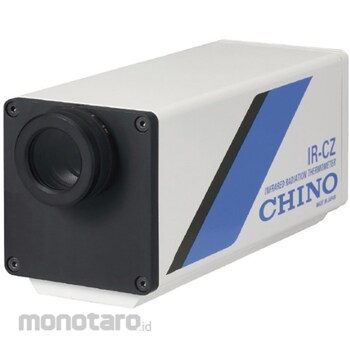

CHINO Radiation Thermometer IR-CZ Series for Low Temperature and High Accuracy IR-CZBLN 1pc
Rp249.999.900
Persediaan
Spesifikasi Produk
| Model Number | IR-CZBLN |
|---|---|
| Unit | 1pc |
| Included Accessories | Certificate text, standard instrument details, traceability system diagram, standard inspection report |
| Power Input (V) | 24 DC |
| Type of Connection | Connector connection, no options |
| Reproducibility | Within 0.5 °C |
| Resolution (°C) | 1 |
| Distance Factor | DIA20/1000mm |
| Power Consumption (VA) | 5.5 |
| Output Signal | 4 to 20mA DC, isolated output (load resistance 750Ω or less) |
| Measurement Temperature Range (°C) | 0~1000 |
| Interface | RS-485 (transmits measurement data and transmits and receives setting parameters) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Response Time (ms) | 1 |
| M Code | 59948196 |
| Berat (Kg) | 2.3 |
| Tanggal Produk Terdaftar | 23 December 2025 |
| Terakhir Diperbaharui | 24 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*When ordering a product number that includes (a complete set of traceability documents), please specify the name to be written on the documents.*Please note that products with (complete set of traceability documents) cannot be canceled or returned after ordering.
*For products that include (a complete set of traceability documents), the manufacturer will inspect and calibrate the product before including the documents.
*Please note that specifications and appearance may be changed without notice for improvement purposes.
*Please check the manufacturer's website for the latest information.
Feature
The IR-CZ series is a stationary radiation thermometer with an integrated digital temperature display and external measurement output.A radiation thermometer that can measure the temperature of polyester film.
