Azbil (Yamatake) photoelectric sensor HP7-T11 1pc

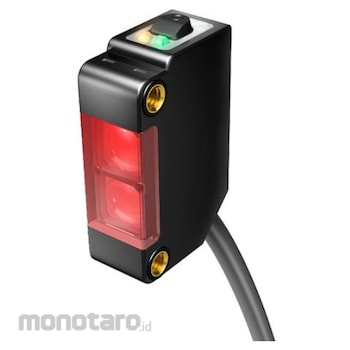

Name: Azbil (Yamatake) photoelectric sensor HP7-T11 1pc
Brand: Azbil (Yamatake)
SKU: S051852535
Price: 1799900 IDR
Availability: InStock

#Nomor SKU S051852535

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	HP7-T11
Unit	1pc
Type	Photoelectric switch with built-in amplifier
Operating Temperature Range (°C)	-30 to 55 (no freezing or condensation)
Protection Class	IP67 (IEC standard)
Withstand Voltage	1000 VAC, 50/60 Hz for 1 minute: Between live parts and case
Cable Length (m)	2
Detection Method	Transmission type
Detection Distance	15m
Operation Mode	NPN
Power Supply Voltage (V)	DC 10.2 to 26.4 (ripple 10% or less)
Light Source	4 red elements (wavelength: about 645 nm)
Response Time	1msec (different frequency 3msec)
Current Consumption (mA)	25 or less
Insulation Resistance (MΩ)	20 or more (DC500V)
Protection circuit	Prevention of malfunction when power is turned on (60 ms or less), power supply reverse connection protection, output short circuit protection
Storage Temperature Range (°C)	-40 to 70 (no freezing or condensation)
Ambient Illumination to Use (Lx)	Incandescent lamp: 10,000 or less, sunlight: 40,000 or less
Sensitivity Adjustment	Operation buttons
M Code	51834495
Berat (Kg)	0.1
Tanggal Produk Terdaftar	16 December 2025
Terakhir Diperbaharui	18 December 2025
