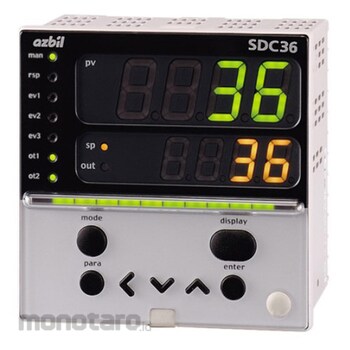

Azbil (Yamatake) Digital indicating controller C36TR ~ C36TR0UA10Y0 1pc

Name: Azbil (Yamatake) Digital indicating controller C36TR ~ C36TR0UA10Y0 1pc
Brand: Azbil (Yamatake)
SKU: S048948685
Price: 23999900 IDR
Availability: InStock

#Nomor SKU S048948685

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	C36TR0UA10Y0
Unit	1pc
Spesifikasi	Traceability certification available
Mass (g)	Approx. 300 (including mounting fixtures)
Standard	JIS C 1602-1995
Type of Input	Universal
Series	SDC C36
Panel Size (mm)	96x96
Power Supply Voltage (V)	AC100 to 240(50/60Hz)
Control Output	relay
Type of Display	Digital 4-digit, 7-segment LED display (PV: upper green/SP: lower orange)
Operation Ambient Temperature (°С)	23±2
Power Consumption (VA)	Up to 12
Indication accuracy	±0.1%FS±1digit
Additional Functions	3 event relay outputs
Event Type	PV upper limit, PV lower limit, PV upper and lower limits, deviation upper limit, deviation lower limit, deviation upper and lower limits, etc.
Sampling Period (ms)	100
M Code	7711043
Berat (Kg)	0.4
Tanggal Produk Terdaftar	13 November 2025
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

[Included] Traceability certificate + Working measuring instrument report - Standard instrument calibration report (Japanese)

Feature

[Included] Traceability certificate + Working measuring instrument report - Standard instrument calibration report (Japanese)
