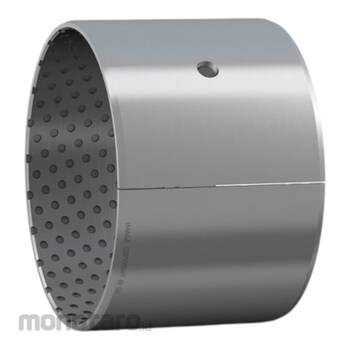

SKF POM Composite Straight Bushing PCM Series PCM 606540 M 1pc

Name: SKF POM Composite Straight Bushing PCM Series PCM 606540 M 1pc
Brand: SKF
SKU: S047879973
Price: 199900 IDR
Availability: InStock

#Nomor SKU S047879973

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PCM 606540 M
Unit	1pc
Bore Diameter (mm)	60
Outside Diameter (mm)	65
Width (mm)	40
Basic Dynamic Load Rating (kN)	280
Basic Static Load Rating (kN)	585
Design	Straight
Material	POM composite
Relubrication Feature	With
UNSPSC	31171605
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	110
Bore Diameter (D) (mm)	60
Outside Diameter (D) (mm)	65
Width (B) (mm)	40
Diameter Lubrication Hole (M) (mm)	6
Minimum Length Chamfer Bore - Axial Direction (c1) (mm)	0.2
Maximum Length Chamfer Bore - Axial Direction (c1) (mm)	1
Minimum Length Chamfer Outside Diameter - Axial Direction (c2) (mm)	0.8
Maximum Length Chamfer Outside Diameter - Axial Direction (c2) (mm)	1.6
Berat (Kg)	0.1
Tanggal Produk Terdaftar	13 August 2025
Terakhir Diperbaharui	14 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

SKF POM composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. After initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably. Despite their compact design, they can accommodate heavy loads.

Peringatan

- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website

Feature

Cost-effective with long service life; Very good frictional properties; High load carrying capacity; High sliding velocity
