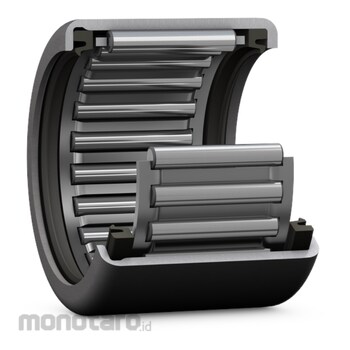

SKF Drawn Cup Needle Roller Bearing HK 4020.2RS with Open Ends and Integral Sealing 1pc
Rp149.900
Persediaan
Spesifikasi Produk
| Model Number | HK 4020.2RS |
|---|---|
| Unit | 1pc |
| Bore Diameter of Needle Roller Complement (mm) | 40 |
| Outside Diameter (mm) | 47 |
| Width (mm) | 20 |
| Basic Dynamic Load Rating (kN) | 19 |
| Basic Static Load Rating (kN) | 39 |
| Limiting Speed (r/minute) | 4500 |
| Bearing Part | Bearing without inner ring |
| Number of Rows | 1 |
| Outer Ring Type | Drawn cup with open ends |
| Aligning Feature | Without |
| Cage | Sheet steel |
| Number of Flanges, Outer Ring | 2 |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| UNSPSC | 31171512 |
| Chamfer Dimension Drawn Cup (Outer Ring) (r) (mm) | min.0.8 |
| Diameter Under Rollers (Fw) (mm) | 40 |
| Outside Diameter (D) (mm) | 47 |
| Width C (mm) | 20 |
| Fatigue Load Limit (Pu) (kN) | 4.55 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 13 August 2025 |
| Terakhir Diperbaharui | 14 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. Sealed bearings are delivered with an initial grease fill.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
High radial load carrying capacity; High stiffness; Very low cross-sectional height; Sealed for increased reliabilityKetentuan dan Kondisi Barang
