Extremely flexible. Excellent shock absorption and torsion damping performance.
Simple structure for easy installation and removal.
No lubrication required, making maintenance easy and economical.
Nitta Chemical Loveflex Coupling RFH Type RFH-210 1pc
Rp9.999.900
Persediaan
Spesifikasi Produk
| Model Number | RFH-210 |
|---|---|
| Unit | 1pc |
| Neck Length L (mm) | (Volts) 30 |
| Voltage (V) | 16 |
| Shaft Diameter Minimum d (mm) | 25 |
| Shaft Diameter Maximum d (mm) | 50 |
| Permitted Rotation Speed (min -1 [rpm]) | 3000 |
| Overall Width L (mm) | 140 |
| Outermost Diameter Da (mm) | 210 |
| Moment of Inertia (N cm²) | 3.55 |
| Flange Spacing Z3 (mm) | 75 |
| Flange Spacing Z2 (mm) | 12 |
| Flange spacing Z1 (mm) | 28 |
| Flange Outer Diameter Df (mm) | phi 168 |
| Flange Length l (mm) | 56 |
| Boss Outer Diameter Dn (mm) | 80 |
| Bolt Pitch Diameter B (mm) | 110 |
| Allowable Torque T (N m) | 490 |
| M Code | 02279655 |
| Berat (Kg) | 10.0 |
| Tanggal Produk Terdaftar | 28 July 2025 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning

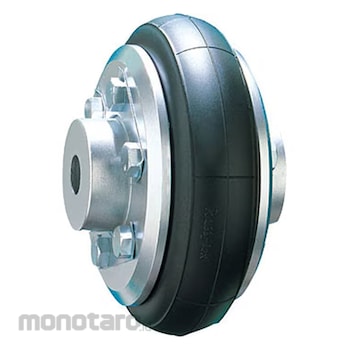

*Sample image (please check the specifications of each product number for details)
