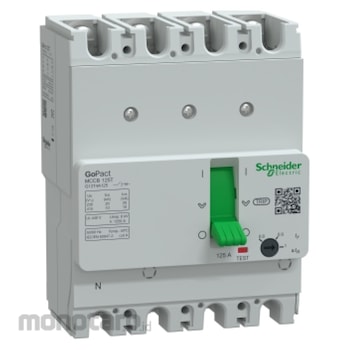

Schneider Electric Moulded Case Circuit Breaker GoPact 125 (MCCB) G12T4A125 1pc

Name: Schneider Electric Moulded Case Circuit Breaker GoPact 125 (MCCB) G12T4A125 1pc
Brand: Schneider Electric
SKU: S047337282
Price: 2499900 IDR
Availability: InStock

#Nomor SKU S047337282

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	G12T4A125
Unit	1pc
Product Range	GoPact MCCB
Product or Component Type	Circuit breaker
Device Application	Distribution
Poles Description	4P
Protected Poles Description	4D
Neutral Position	Left
[In] Rated Current (A)	125 at 40°C
[Ue] Rated Operational Voltage (V)	415 AC 50/60Hz conforming to EN/IEC 60947-2
Suitability For Isolation	Yes conforming to EN/IEC 60947-2
Utilization Category	Category A
Performance Level	T 10 kA 380/415 V AC
Trip Unit Name	TM-D
Trip Unit Technology	Thermal-magnetic
Trip Unit Protection Functions	LI
Control Type	Toggle
Circuit Breaker Mounting Mode	Fixed
[Ui] Rated Insulation Voltage (V)	440 AC conforming to EN/IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage (kV)	6 conforming to EN/IEC 60947-2
[Icu] Rated Ultimate Short-Circuit Breaking Capacity (kA)	10 Icu at 380/415V AC 50/60Hz conforming to EN/IEC 60947-2; 20 Icu at 220/230V AC 50/60Hz conforming to EN/IEC 60947-2
[Ics] Rated Service Short-Circuit Breaking Capacity (kA)	10 at 380/415V AC 50/60Hz conforming to EN/IEC 60947-2; 20 at 220/230V AC 50/60Hz conforming to EN/IEC 60947-2
Berat (Kg)	0.9
Tanggal Produk Terdaftar	07 July 2025
Terakhir Diperbaharui	17 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This product is part of the new GoPact Molded Case Circuit Breakers range (MCCB). It is a complete 4 poles circuit breaker made of a 125A breaker frame and of a thermal magnetic trip unit (TMD). GoPact MCCB has a good price-performance ratio for basic applications and delivers a reliable electrical protection for your applications. The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 125A rating (In) thermal-magnetic trip unit (TMD). This TMD trip unit provides an adjustable thermal protection Ir (against overloads) with a setting range from 0.8xIn to 1xIn (100A-125A). The neutral is fully protected (4 poles 4D), at the same Ir value as for the lines. And it provides a fixed magnetic (against short-circuits) protection set to 10xIn (1250A). GoPact MCCB comes with a variety of optional accessories simple to choose and to install. The weight is 0.9 kg. GoPact MCCB 125 is IEC 60947-1 and IEC 60947-2 certified. GoPact MCCB range benefits from Schneider Electric quality assurance.
