NO3-N will be absorbed at 210 nm UV light. When the Spectrometer Nitrate sensor is working, the water sample flows through the slit. When the light from the light source in the sensor passes through the slit, part of the light is absorbed by the sample flowing in the slit, and the other light passes through the sample and reaches the other side of the sensor. Calculate the concentration of nitrate.
1) Nitrate nitrogen sensor is directly measurement without sampling and pre-processing.
2) No chemical reagents, no secondary pollution.
3) Short response time and continuous online measurement.
4) The sensor has an automatic cleaning function that reduces maintenance.
5) Sensor power supply positive and negative reverse connection protection.
6) Sensor RS485 A/B terminal is connected to the power supply protection

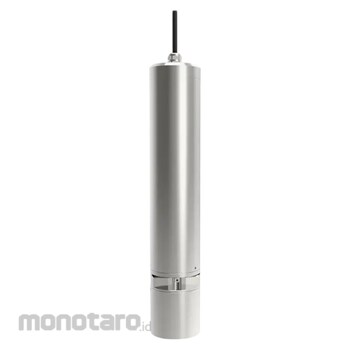

BOQU Digital Nitrate Nitrogen Sensor BH-485-NO3 1unit
Rp219.999.900
Persediaan
Spesifikasi Produk
| Model Number | BH-485-NO3 |
|---|---|
| Unit | 1unit |
| Measuring Range (mg/L) | Nitrate nitrogen NO3-N: 0.1~40.0 |
| Accuracy (%) | ±5 |
| Repeatability (%) | ± 2 |
| Resolution (mg/L) | 0.01 |
| Pressure Range (MPa) | ≤0.4 |
| Sensor Material | Body:SUS316L(freshwater), Titanium alloy(Ocean marine); Cable:PUR |
| Calibration | Standard calibration |
| Power Supply (V) | DC:12DC |
| Communication | MODBUS RS485 |
| Working Temperature (°C) | 0-45 (Non-freezing) |
| Dimensions (mm) | Sensor : Diam 69xLength 380 |
| Protection | IP68 |
| Cable Length (m) | Standard:10, the maximum can be extended to 100 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 19 June 2025 |
| Terakhir Diperbaharui | 18 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
1) Drinking water / surface water2) Industrial production process water / sewage treatment, etc.,
3) Continuously monitor the concentration of nitrate dissolved in water, especially for monitoring sewage aeration tanks, controlling denitrification process
