Endress Hauser Temperature Transmitter TMT71-AAA1AABA1 TMT71 PT100 To PT1000 Input, 10 → 36V 1pc

Name: Endress Hauser Temperature Transmitter TMT71-AAA1AABA1 TMT71 PT100 To PT1000 Input, 10 → 36V 1pc
Brand: Endress Hauser
SKU: S047095021
Price: 9699900 IDR
Availability: InStock

#Nomor SKU S047095021

Endress Hauser

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TMT71-AAA1AABA1
Unit	1pc
Measuring Principle	Head transmitter
Input	1 x RTD, TC, Ohm, mV
Output	1 x analog 4 to 20mA
Auxiliary Power Supply (V)	10...36 DC (Head transmitter) 11...36 DC (DIN rail device) 10/11...30 DC (Ex ia)
Communication	pc-programmable Bluetooth® wireless technology
Installation	Terminal head form B / DIN rail / field mount housing
Accuracy	(Pt100, -50...200 °C) <= 0,1 K (Pt100, -58...392 °F) <= 0,18 °F
Galvanic Isolation	Yes
Certification	ATEX Ex ia, Ex ic, Ex tc, Ex nA, Ex db, Ex tb ATEX IECEx Ex ia, Ex tb IECEx Ex d, Ex tb CSA C/US General Purpose CSA C/US IS, Ex ec, XP, DIP INMETRO Ex ia, Ex d, Ex tb NEPSI Ex ia, Ex d, Ex tb EAC Ex ia, Ex d UKCA Ex ia, Ex tc, Ex nA, Ex db, Ex tb
Measuring/Application Task	Temperature transmitters
Berat (Kg)	0.7
Tanggal Produk Terdaftar	13 June 2025
Terakhir Diperbaharui	16 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

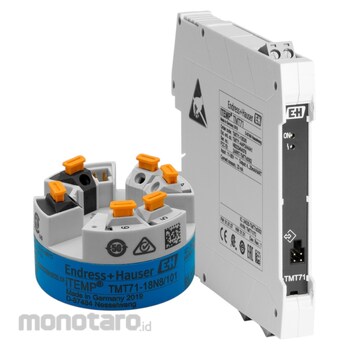

iTEMP TMT71 temperature transmitter
TMT71-AAA1AABA1
4-20 mA temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

Feature

Safe operation in hazardous areas thanks to international approvals
Reliable operation thanks to sensor and device monitoring
Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App, optional
User-friendly guided user interface concept also on-site via Bluetooth®
Available with plug-on display TID10
Diagnostics information according to NAMUR NE 107

Use

Field of application
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.
Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
Installation in terminal head form B as per DIN EN 50446
Installation in cabinets with DIN rail housing
Optional installation in field housing for Ex d applications
