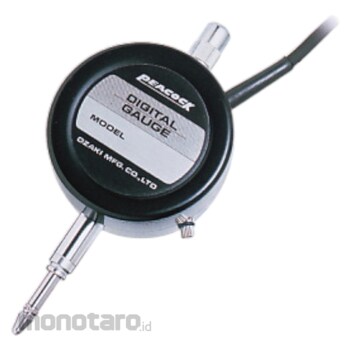

Ozaki (Peacock) Standard Linear Gauge D-20S 1unit

Name: Ozaki (Peacock) Standard Linear Gauge D-20S 1unit
Brand: Ozaki (Peacock)
SKU: S046250087
Price: 7499900 IDR
Availability: InStock

#Nomor SKU S046250087

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	D-20S
Unit	1unit
Resolution (mm)	0.001
Range (mm)	0-20
Accuracy (mm)	(Excluding quantized error) 0.003
Measuring Force (N)	Less Than 1.5
Cable Length (m)	2
Mounting Method (mm)	Ø8 stem or 6.5 hole on lug back
Contact Point (mm)	M2.5x0.45 SØ2.4 steel (X-2)
Operating Temperature (°С)	0 - 40
Output Signal	90º phase difference, 20µm pitch (R03-PB8M Tajimi connector) Rectangular wave (L=0v H=5v)
Compatible Standard Counters	C-500 / C-700 CM-5B (*except DN-10S, DN-20S)
Berat (Kg)	0.3
Tanggal Produk Terdaftar	29 April 2025
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Measurement range (0 - 20mm)
- 10mm and 20mm measurement ranges are the easiest to use.
- Used in conjunction with digital counters, these gauges can be set up in places where dial gauges are now being used.
- Set the gauge by either stem or lug back.
- For lifting spindle, both lever and release types are available.
Rectangular wave output typ (DN-10/DN-10S/DN-20/DN-20S)
- For use in electrically noisy environments.
- For applications requiring extra long cables. (10 to 50 meters are available)

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

DN-10 DN-10S DN-20 DN-20S
1. Recommended for locations where cable extension (10 to 50 meters) is necessary.
2. Recommended for use in electrically noisy environments.
*Notes of wiring : A signal wire should be duct wiring apart from other Power lines.

Options
- Release (RE-4L) Lifting lever (LL-1)
- Dust proof rubber (BG-10)
- Flat back (GB3-D1O) , screws (S-110)
- Release (RE-4L)
- Flat back (GB3-D20)

* Customer must specify if application is up-side-down.
The measuring force changes when the gauge is inverted.
