YAMADA Repair Part AK-10 for Air Motor Side of DP-10 Series AK-10 1pc

Name: YAMADA Repair Part AK-10 for Air Motor Side of DP-10 Series AK-10 1pc
Brand: YAMADA
SKU: S045714313
Price: 2099900 IDR
Availability: InStock

#Nomor SKU S045714313

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AK-10
Unit	1pc
Connection Bore Diameter (mm)	6.5
Discharge Port Diameter	3/8
Discharge Rate (L/minute)	20
Discharge Rate (ml/minute)	20000
Included Accessories	Parts exploded view, parts list
Material	Air motor body = Aluminium Alloy (ADC12)
Maximum Discharge Pressure (MPa)	0.7
Maximum Discharge (L/hour)	1200
Maximum Flow Rate (L/minute)	20
Maximum Pressure (bar)	7
Noise Level (dB)	84
Opening Diameter (mm)	Call = 10
Operating Pressure Range (MPa)	Pump air = 0.2 to 0.7
Pump Diameter	3/8

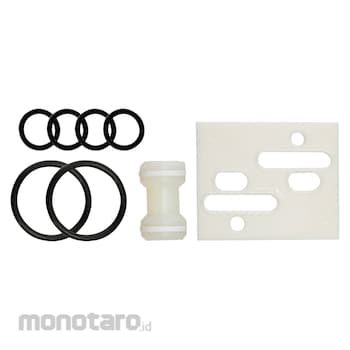

Set Content	684284 Packing (4 pieces), 801404 Spool (1 piece), 640131 O-ring (2 pieces), 771358 Gasket (1 piece)
Temperature (°C)	Transportable = 0 to 60
Usable Viscosity (mPa.s)	Liquid density = 500
M Code	79678316
Berat (Kg)	0.5
Tanggal Produk Terdaftar	02 March 2025
Terakhir Diperbaharui	04 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

- Applicable models: YAMADA DP-10 series

Feature

This is a repair parts kit for the air motor of the YAMADA air-driven diaphragm pump DP-10 series.
General consumable parts are included in the set, making it easy to maintain the diaphragm pump you are using.

Use

For YAMADA DP-10 series air motors.
For repairing DP-10 series air motors.
