AND Bending Single Point Aluminium LC-4103-K100 1unit

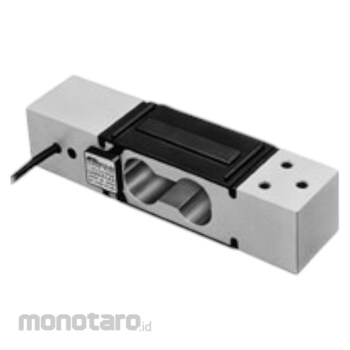

Name: AND Bending Single Point Aluminium LC-4103-K100 1unit
Brand: AND
SKU: S045008801
Price: 5499900 IDR
Availability: InStock

#Nomor SKU S045008801

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	LC-4103-K100
Unit	1unit
Rated Capacity (kgf)	100
Rated Output (mV/V)	1 +15/-0%
Combined Error (%)	±0.015 of Rated Output
Recommended Excitation Voltage (V)	12
Maximum Excitation Voltage (V)	15
Insulation Resistance (MΩ)	Greater than 5000 MΩ at DC50 V
Temperature Effect	Zero (004% of Rated Output/°C), Span (0014% of Rated Output/ Type)
Platform Size (mm)	400 x 600 mm (15.8 x 23.6 inch)
Cable Length (m)	2 (78 inch)
Output Terminal Resistance (ohm)	350 ± 5
Input Terminal Resistance (ohm)	Approximately 400
Temperature Compensation Range (°C)	-10 to +40 (+14 °F to +104 °F)
Zero Balance (%)	20±5 of Rated Output
Creep (%)	±0.05 of Rated Output/hour
Maximum Safe Overload (%)	300 of Rated Capacity
Maximum Deadweight (%)	80 of Rated Capacity
Berat (Kg)	1.0
Tanggal Produk Terdaftar	31 December 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

Features
Parallelogram-type construction
400 × 600 mm platforms can be used
Temperature compensation maintains both zero and span from -10 °C to +40 °C (+14 °F to +104 °F)
Deadweight up to 80% of capacity. Load weight and deadweight up to 180% of capacity
Moisture proof
Compact and lightweight
