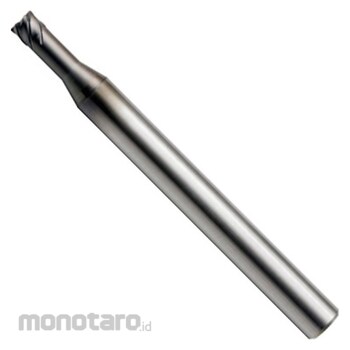

Union Tool Long Neck Radius End Mill for Roughing Process UDCRRS6040-020-100 4x10x60mm 1pc

Name: Union Tool Long Neck Radius End Mill for Roughing Process UDCRRS6040-020-100 4x10x60mm 1pc
Brand: Union Tool
SKU: S044760946
Price: 5499900 IDR
Availability: InStock

#Nomor SKU S044760946

Union Tool

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	UDCRRS6040-020-100
Unit	1pc
Material	MG
Number of Tips	6 sheets
Overall Length L (mm)	60
Blade Length (mm)	3.2
Shank Diameter (mm)	6
Blade Diameter (mm)	4
Outer Diameter (mm)	4
Effective Length (mm)	10
Surface Treatment	UDC COAT
Corner Radius (mm)	R0.2
ROHS Directive (Corresponding to 10 Substances)	Correspondence
M Code	52841296
Berat (Kg)	0.1
Tanggal Produk Terdaftar	13 December 2024
Terakhir Diperbaharui	04 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

- The shank taper angle is just a guide.
- If interference with the workpiece is necessary, be sure to measure and confirm.
- Please be careful of contact between the shank and the workpiece.

Feature

This is a UDC long neck radius end mill that can cut ultra-hard alloys with high efficiency and long life. With a multi-blade design of 6 blades/10 blades and a 40° twisted shape, it allows for deeper axial cutting compared to traditional 2-blade designs, resulting in reduced processing time in rough processing stages.

Use

Compatible materials for cutting: cemented carbide, hard and brittle materials, glass-filled resin.
