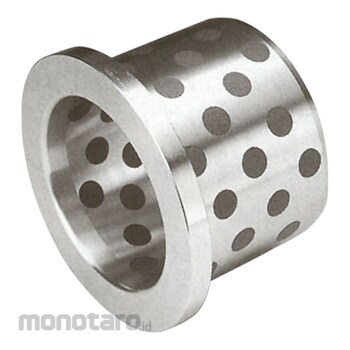

OILES #500 SP Flange Bush SPF-2550 25mm 1pc
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | SPF-2550 |
|---|---|
| Unit | 1pc |
| Operating Temperature Range (°C) | No lubrication: -40 to +300 ; Regular lubrication: -40 to +150 |
| Outer Diameter d (mm) | 35(+0.050~+0.034) |
| Length L (mm) | 50(-0.1~-0.3) |
| Dimensions t (mm) | 5(0~-0.1) |
| Inner Diameter d (Φmm) | 25(+0.061~+0.040) |
| Dimension F (mm) | phi 45 |
| Inner Diameter Tolerance after Press Fitting (Reference) | +0.032~+0.011 |
| Chamfering under the Flange (mm) | R0.5 |
| Allowable PV Value (N/mm²) | No lubrication: 1.65; Periodic lubrication: 3.25 |
| Allowable Maximum Surface Pressure P (N/mm²) | 29 (98); () Is static permissible surface pressure |
| Allowable Maximum Speed (m/s) | No lubrication: 0.50; Regular lubrication: 1.00 |
| Allowable Maximum Speed V (m/minute) | No lubrication: 30; Regular lubrication: 60 |
| Allowable Maximum Surface Pressure P (kgf/cm²) | 296 (1000); () Is static permissible surface pressure |
| M Code | 07203621 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 29 November 2024 |
| Terakhir Diperbaharui | 04 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Please avoid using in seawater.The flange section does not have embedded lubricant so it cannot withstand thrust loads.
Feature
Oil-less #500SP1 is a high-load, oil-free bearing made from a high-strength brass alloy created using advanced casting technology, embedded with solid lubricants. Depending on the operating conditions, it can be used in combination with various solid lubricants. It can be used without oil. It performs well in high-load, low-speed applications. It exhibits excellent wear resistance in difficult areas where the formation of an oil film is challenging, such as in rotating, oscillating, reciprocating, and frequently starting/stopping movements. It has excellent chemical resistance and corrosion resistance.Ketentuan dan Kondisi Barang
