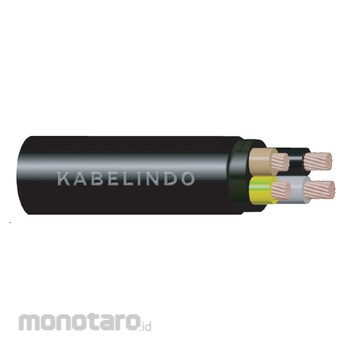

Kabelindo Kabel NYY 4x120 1m

Name: Kabelindo Kabel NYY 4x120 1m
Brand: Kabelindo
SKU: S044091026
Price: 1199900 IDR
Availability: OutOfStock

#Nomor SKU S044091026

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	NYY
Unit	1m
Nominal Cross Section Area (mm²)	120
Number of Cores	4
Nominal Thickness Insulation (mm)	1.6
Nominal Thickness Outer Sheath (mm)	2.3
Overall Diameter (mm)	Approx. 44
Minimum Insulation DC Resistance at 20°C (MΩ/km)	3
Current Carrying Capacity in Ground (A)	'285 at 30°C
Current Carrying Capacity in Air (A)	'285 at 30°C
Short Circuit Current Capacity (kA)	13.8 (at 1.0 second)
Berat (Kg)	3.0
Tanggal Produk Terdaftar	01 October 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Conductor:
Annealed plain copper round solid or round circular stranded according to SNI IEC 60228
Insulation:
Extruded layer of Polyvinyl Chloride (PVC) complied with SNI IEC 60502-1
Inner Covering / filler:
Extruded Polyvinyl Chloride (PVC), Black colour
Outer Sheath:
The Outer Sheath shall be a layer of Extruded Polyvinyl Chloride (PVC) Grade ST1 to SNI IEC 60502-1. Black colour.
Applications:
Indoor and outdoor induct installation or of laying in the ground where not sustain mechanical damage.

Peringatan

- Foto hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Warna produk mengacu pada nama dan spesifikasi produk yang tertera pada website
- Produk yang diterima akan sesuai dengan informasi yang tertera pada website"

Feature

• Fire Resistance
• Flame Retardant Cat. A/B/C
• Oil Resistance
• UV Resistance
• Anti termite
• Anti rodent
• Low Smoke Zero Halogen
