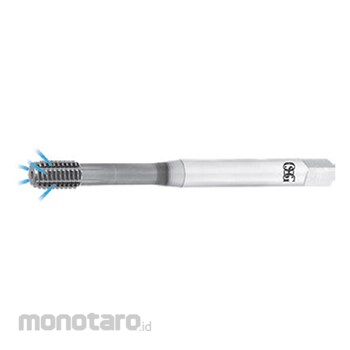

OSG Threading Forming Tap Metric 48042179 OIL-S-XPF M12x1.75mm 1pc

Name: OSG Threading Forming Tap Metric 48042179 OIL-S-XPF M12x1.75mm 1pc
Brand: OSG
SKU: S044054786
Price: 1599900 IDR
Availability: InStock

#Nomor SKU S044054786

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	48042179
Unit	1pc
Connection diameter (DCON) (mm)	9.00
Standard DIN	2174
Drive Size (DRVS) (mm)	7.00
Flute Count (NOF)	8.00
Functional length (LF) (mm)	110.00
Hole Type Application	Through and Blind Hole
Premachined Hole Diameter (PHD) (mm)	11.10 to 11.20
Tap Type	Forming Tap
Thread Chamfer Length (THCHL)	2.5000
Thread Diameter (TD) (mm)	12
Thread Length (THLGTH) (mm)	17.00
Thread Tolerance	ISO2-6HX
Thread Type	Metric
Tool Material	HSS Cobalt (Co8)
Coating	Multilayer coating TiCN
Tool Tolerance	ISO 2 6H
Chamfer Length	Form C (2.5 Pitch)
Coolant	Side Through
Shank	Reinforced Shank (DIN 2174), Straight Shank (DIN 2174)
Thread per Inch	1.75
Berat (Kg)	0.3
Tanggal Produk Terdaftar	25 September 2024
Terakhir Diperbaharui	16 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- Side through coolant
