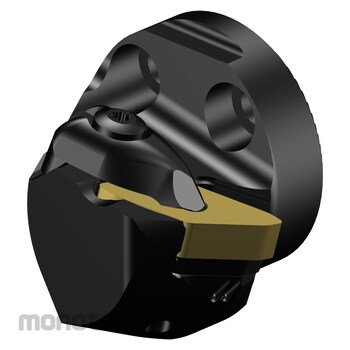

Sandvik CoroTurn Prime Head for Turning SL-CP-X-25BR-40-12B 1pc

Name: Sandvik CoroTurn Prime Head for Turning SL-CP-X-25BR-40-12B 1pc
Brand: Sandvik
SKU: S043997985
Price: 9299900 IDR
Availability: InStock

#Nomor SKU S043997985

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SL-CP-X-25BR-40-12B
Unit	1pc
Tool Cutting Edge Angle (KAPR1) (°)	25
Tool cutting edge angle (KAPR2) (°)	25
Lead Angle (PSIR) (°)	65
Clamping type code (MTP)	D: clamp on top of insert and into hole
Insert Type (CUTINT_MASTER)	CoroTurn PRIME CP-B (CP-B1208D)
Connection - Machine Side (ADINTMS)	SL head (screw mounted) -size 40
Maximum ramping angle (RMPX) (°)	23
Minimum bore diameter (DMIN1) (mm)	60
Workpiece side body angle (BAWS) (°)	0 (zero)
Machine side body angle (BAMS) (°)	0 (zero)
Maximum overhang (OHX) (mm)	16
Hand (HAND)	R
Coolant Entry Style (CNSC)	1: axial concentric entry
Coolant Exit Style (CXSC)	3: axial inclined exit
Coolant Exit Type (CXST)	2: under the cutting edge
Coolant Pressure (CP) (bar)	150
Connection Diameter (DCONMS) (mm)	40
Protruding length (LPR) (mm)	38
Functional length (LF) (mm)	16
Functional width (WF) (mm)	27
Functional height (HF) (mm)	0 (zero)
Orthogonal rake angle (GAMO) (°)	-10
Inclination angle (LAMS) (°)	-8
Torque (N m)	4
Body Material (BMC)	Steel
Master Insert Identification (MIID)	CP-B1208D
Berat (Kg)	0.2
Tanggal Produk Terdaftar	19 September 2024
Terakhir Diperbaharui	06 February 2026
