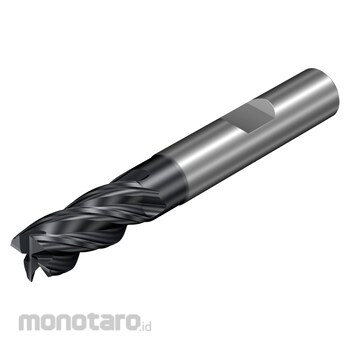

Sandvik CoroMill Dura Solid Carbide End Mill for General Machining 1K344-2000-XD 1730 1pc
Rp8.999.900
Persediaan
Spesifikasi Produk
| Model Number | 1K344-2000-XD 1730 |
|---|---|
| Unit | 1pc |
| Workpiece Materials (TMC1ISO) | P (Steel), M (Stainless Steel), K (Cast Iron), N (Non-ferrous metals), S (Heat resistant super alloys) |
| Cutting diameter (DC) (mm) | 20 |
| Tool cutting edge angle (KAPR) (°) | 90 |
| Tolerance Class Cutting Diameter (TCDC) | h10 |
| Cutting Diameter Face Contact (DCF) (mm) | 19.4 |
| Corner chamfer (KCH) (°) | 45 |
| Corner chamfer width (CHW) (mm) | 0.3 |
| Depth of cut maximum (APMX) (mm) | 41 |
| Depth of cut maximum (APMXFFW) (mm) | 41 |
| Depth of cut maximum (APMXPFW) (mm) | 41 |
| Centre cutting capability (CCC) | Yes |
| Usable length (LU) (mm) | 56 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Connection - Machine Side (ADINTMS) | Weldon (DIN6535-HB) -metric: 20 |
| Maximum ramping angle (RMPX) (°) | 20 |
| Connection diameter tolerance (TCDCON) | h6 |
| Grade (GRADE) | 1730 |
| Substrate (SUBSTRATE) | HW |
| Shank Standard Group (BSG) | COROMANT |
| Coolant Entry Style (CNSC) | 0: without coolant |
| Connection Diameter (DCONMS) (mm) | 20 |
| Functional length (LF) (mm) | 111 |
| Body diameter (BD) (mm) | 19.2 |
| Neck diameter (DN) (mm) | 19.2 |
| Body length (LB) (mm) | 56 |
| Body half taper angle (BHTA1) (°) | 30 |
| Body half taper angle (BHTA2) (°) | 30 |
| Flute helix angle (FHA) (°) | 35.5 |
| Radial rake angle (GAMF) (°) | 10 |
| Axial rake angle (GAMP) (°) | 5 |
| Maximum regrinds (NORGMX) | 4 |
| Maximum Rotation Speed (rpm) | 80000 |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 19 September 2024 |
| Terakhir Diperbaharui | 06 February 2026 |
