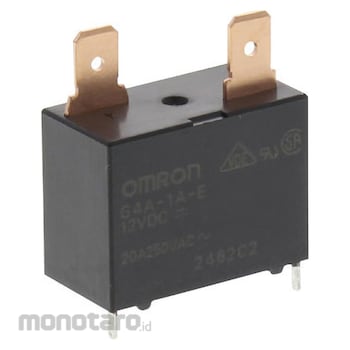

OMRON Power Relay G4A-1A-E DC12 1pc

Name: OMRON Power Relay G4A-1A-E DC12 1pc
Brand: OMRON
SKU: S043843794
Price: 119900 IDR
Availability: InStock

#Nomor SKU S043843794

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	G4A-1A-E DC12
Unit	1pc
Number of Poles	1
Contact Configuration	1a
Ambient Humidity to Use	5 to 85%RH
Power Consumption (W)	0.9
Coil Rated Voltage (V)	DC12
Mass (g)	About 23
Rated Voltage (V)	DC12
Shock Resistance (Destruction) (m/s2)	1000, 200
Contact Resistance (miliΩ)	100 or less (DC5V 1A voltage drop method)
Insulation Resistance (MΩ)	1000 or more (with DC500V mega)
Mechanical Durability	2 million times
Operating Voltage	70% or less
Ambient Operating Temperature (°C)	-20 to +60 (with no icing or condensation)
Return Voltage	More than 10
Terminal Shape	Tab terminal, PCB terminal
Type	Power relay
Terminal Structure	For both tab terminals and printed circuit board terminals
Vibration Resistance (Destruction)	10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5)
Vibration Resistance (Malfunction)	10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5)
M Code	39067481
Berat (Kg)	0.1
Tanggal Produk Terdaftar	30 August 2024
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

1 ultra-compact power relay that achieves input 80A, energization, and cutoff 20A.
The motor load can be opened and closed with an input current of 80A, energization, and a cutoff current of 20A.
Achieves high capacity opening and closing and high durability despite its small size.
Secures insulation distance that complies with UL and CSA air conditioner standards.
Uses an insulation structure with high noise resistance.
A standard product with a flux resistant structure.
RoHS compliant.
Air conditioner
