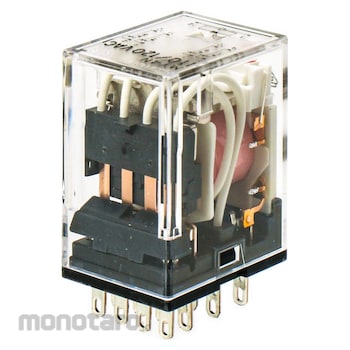

OMRON Mini Power Relay MY4N AC110/120 1pc

Name: OMRON Mini Power Relay MY4N AC110/120 1pc
Brand: OMRON
SKU: S043827664
Price: 229900 IDR
Availability: InStock

#Nomor SKU S043827664

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MY4N AC110/120
Unit	1pc
Number of Poles	4
Contact Configuration	4c
Number of Pins	14
Coil Rated Voltage (V)	AC110/120
CR Circuit	None
Mass (g)	About 35
Operation Indicator	LED
Protection Class	In a case
With or Without Diode	None
Classification	Built-in operation indicator
Contact Resistance (miliΩ)	50 or less (DC5V 1A voltage drop method)
Ambient Operating Temperature (°C)	-55 to 60 (no freezing or condensation)
Outer Dimensions, Width WxDepth DxHeight H (mm)	21.5 or lessx28 or lessx36 or less
Terminal Shape	Plug-in terminal
Terminal Structure	Plug-in terminal
Type	Relay for control panel
Type of Connection	Standard type
Vibration Resistance (Destruction)	10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm)
Applicable Standard	(CSA) Standard number: C22.2 No.0, No.14 File No .: LR31928 (LR) 98/10014 (UL) Standard number: UL508 File No .: E41515 (VDE) 112467UG (Other) Compliant standard: Electrical Product safety law compliant product
Insulation Resistance (MΩ)	100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage)
M Code	39088673
Berat (Kg)	0.1
Tanggal Produk Terdaftar	30 August 2024
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Eliminates the use of lead and supports environmental protection. Obtained additional VDE standard (Germany) and IMQ standard (Italy). By changing the color of the AC / DC coil tape, the distinguishability of AC / DC specifications is improved.

Peringatan

PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.
