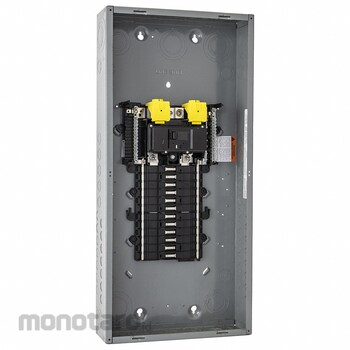

SQUARE D Square D QO Load Centers QO124M200P 200A Amps, 120/240V AC 120/240Vac 1unit
Rp9.499.900
Persediaan
Spesifikasi Produk
| Model Number | QO124M200P |
|---|---|
| Unit | 1unit |
| UNSPSC | 39121101 |
| For use with | Square D QO Circuit Breakers |
| Width (inch) | 14.25 |
| Color | Gray |
| Height (inch) | 29.88 |
| Depth (inch) | 3-3/4 |
| Standards | RoHS Compliant; UL Listed |
| Phase | 1 |
| Amps (A) | 200 |
| Voltage (V) | 120/240 AC |
| Special Features | Mercury Free |
| Location | Indoor |
| Maximum Operating Temperature (°F) | 104 |
| Minimum Operating Temperature (°F) | 23 |
| Circuit Breaker Type | QO |
| Enclosure NEMA Rating | 1 |
| Included Enclosure Cover | Order Separately |
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Max. No. of Tandem Breakers | 12 |
| Number of Spaces | 24 |
| Short Circuit Current Rating (kA) | 22 |
| Berat (Kg) | 8.3 |
| Tanggal Produk Terdaftar | 28 June 2024 |
| Terakhir Diperbaharui | 24 December 2025 |
Informasi Produk
Description
These Square D main breaker load centers distribute the main supply of power and have a main breaker to protect the circuit from overcurrents. They can be converted to a main lug load center with a required lug kit, so they can be used when a remote panel is desired. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. These load centers are used with QO series breakers. They can be used at the service entrance in residential, commercial, and industrial applications.
