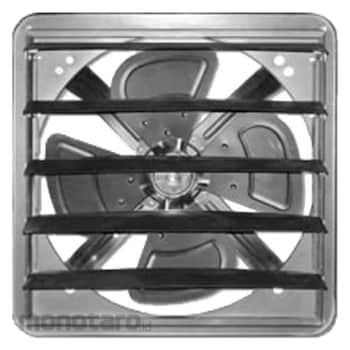

Vanco Exhaust Fan Standard Shutter VFA-300 SN 12inch 1pc

Name: Vanco Exhaust Fan Standard Shutter VFA-300 SN 12inch 1pc
Brand: Vanco
SKU: S042258940
Price: 1299900 IDR
Availability: InStock

#Nomor SKU S042258940

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	VFA-300 SN
Unit	1pc
Size (inch)	Ø12
Speed (rpm)	1400
Power (W)	55
Voltage (V)	220
Frequency (Hz)	50
Max. Abs. Current (A)	0.2
Sound Level (dB)	49
Air Volume (m³/hour)	1080
Dimension A (mm)	377
Dimension B (mm)	347
Dimension C (mm)	phi 11
Dimensions d (mm)	338
Dimension E (mm)	10
Dimension F (mm)	150
Dimension G (mm)	50
Berat (Kg)	10.0
Tanggal Produk Terdaftar	20 June 2024
Terakhir Diperbaharui	11 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Fixed blades axial flow fans
Standard plate mounted exhaust fan - VFA series

The VFA range of plate mounted low pressure axial fans consists of five nominal diameters : 200, 250, 300,350,400,500,600 mm respectively.
Air volume perforamnce ranges from 720 up to 8705m3/hr.
The VFA range are designed to be installed directly into walls, ceiling or panels and are suitable for use within a wide range or general ventilation applications.
General ventilation of industrial premises, agricultural applications,warehouses,car parks,workshop,etc

All models incorporate single phase 220V/50Hz shaded pole asynchronous induction motors
