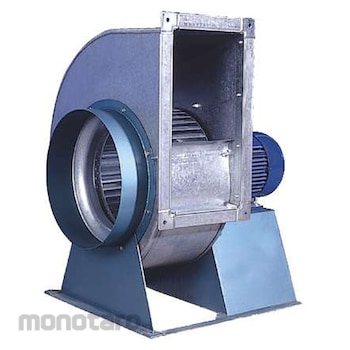

Vanco Direct Drive Centrifugal Fan VCD Series VCD-4/200/3 4 Pole 1400rpm 1pc

Name: Vanco Direct Drive Centrifugal Fan VCD Series VCD-4/200/3 4 Pole 1400rpm 1pc
Brand: Vanco
SKU: S042258261
Price: 7099900 IDR
Availability: InStock

#Nomor SKU S042258261

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	VCD-4/200/3
Unit	1pc
Speed (rpm)	1400
Pole	4
Power (hp/kW)	0.75/0.55
Pressure (mmH2O)	10
Max. Abs. Current (A)	1800
Maximum Air Volume (m³/hour)	1800
Noise (dBA)	85
Berat (Kg)	35.0
Tanggal Produk Terdaftar	20 June 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Direct Drive Centrifugal Fans
Forward Curved Blades, Direct Drive - VCD Series

The VCD Series are suitable for general and OEM ventilation application.
They can be used for extracting or supplying such as industrial kitchen extract.
Airflow performances ranges from 1,800m3/h up to 9,000 m3/h

The VCD housings are manufactured from high quality galvanized steel sheet.
The VCD series incorporate forward curved impellers made from galvanized steel sheet coupled directly to shaft of the motor and dynamically balanced.
These fans are using asynchronous induction motors with a squirrel cage rotor in die cast aluminum as standard.
The electrical supply applies 3 phase 380V / 50Hz.
All VCD series are available in 6 and 4 poles motor speed
