VENN Steam Trap AK-21 Type AK21-G Nominal Diameter (B) 1/2, (A) 15 1pc

Name: VENN Steam Trap AK-21 Type AK21-G Nominal Diameter (B) 1/2, (A) 15 1pc
Brand: VENN
SKU: S042151357
Price: 4199900 IDR
Availability: OutOfStock

#Nomor SKU S042151357

VENN

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AK21-G
Unit	1pc
Material	Valve body, valve seat (SUS), bucket (SUS)
Material (Main Unit)	FC
Type	Bucket Type
Dimension H (mm)	68.5
Nominal Diameter B	1/2
Dimension L1 (mm)	130
Dimension L2 (mm)	76
Dimension G (mm)	72.5
Nominal Diameter A	15
Fluid Temperature (°C)	5 - 100
Mounting Direction	Upright mounting on horizontal piping
Suitable fluid	Air
End Connection	JIS Rc thread
Material (Valve Member)	SUS
Material (Valve Seat)	SUS
Applicable Pressure Range (MPa)	0.01 - 0.98
Withstand Voltage Test Pressure (MPa)	(At water pressure) 1.5
Necessary Water (mL)	Approx. 300 (approximate)
M Code	52946916
Berat (Kg)	2.7
Tanggal Produk Terdaftar	16 May 2024
Terakhir Diperbaharui	20 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The structure is simple and easy to maintain. It has a structure that is resistant to dust and scale.
Since the structure allows drainage to easily flow in, there is no need to install a pressure equalizing pipe.

Warning

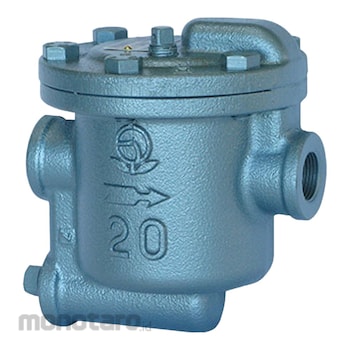

Image on this page only as Representative Image, Please check the specifications of each size and color for details
