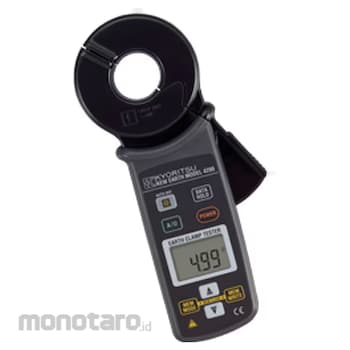

KYORITSU Earth Clamp Testers (Tang Ampere Grounding) 4200 (CAL) Include Calibration Certificate 1unit

Name: KYORITSU Earth Clamp Testers (Tang Ampere Grounding) 4200 (CAL) Include Calibration Certificate 1unit
Brand: KYORITSU
SKU: S042064442
Price: 26999900 IDR
Availability: InStock

#Nomor SKU S042064442

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4200 (CAL)
Unit	1unit
Earth Resistance Auto Range (ohm)	20.00/200.00/1500
Over Range Indication	"OL"is displayed when input exceeds the upper limit of a measuring range
Current Consumption (mA)	Approx. 50 (max.100)
Conductor Size (mm)	Approx. 32
Power Source	DC6V : R6(sizeAA manganese battery) x4 or LR6 (sizeAA alkaline battery) x4
Dimensions (mm)	246x120x54 (LxWxD)
Response Time (s)	Approx. 7 (Earth resistance); Approx. 24 (AC current)
Set Contents	R6 x4, instruction manual8304 (Resister for operation check)9166 (Carrying case [hard])
Berat (Kg)	2.4
Tanggal Produk Terdaftar	06 May 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes.
- True RMS; Accurate true RMS readings of AC current including disorted waveform from 1mA to 30.0A.
- Noise check function; A function to detect current, which effects on an earth resistance measurement and display "NOISE" mark on the LCD.
- Memory function; Save and display up to 100 measurement data.
- Data hold function/buzzer function/back light function.
- Compliant with safety standards of IEC 61010-1 : CAT IV 300V pollution degree2.

Warning

A single earthing can not be measured. (Only for multiple earthing system)
