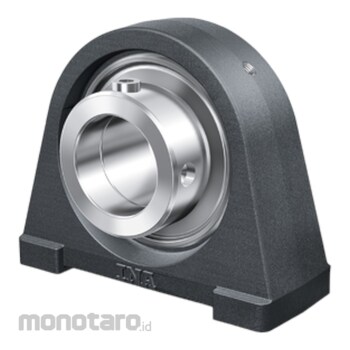

INA Plummer Block Housing Unit RSHEY Type RSHEY40XLN 1pc
Rp799.900
Persediaan
Spesifikasi Produk
| Model Number | RSHEY40XLN |
|---|---|
| Unit | 1pc |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Length Total (L) (mm) | 116 |
| Height (H2) (mm) | 99 |
| Distance Shaft Axis (h) (mm) | 49.2 |
| Width (base) (A) (mm) | 48 |
| Width (Head) (A1) (mm) | 30 |
| Distance of Raceway To Locking Collar (S1) (mm) | 30.2 |
| Connection Thread For Lubrication (Q) | M6 |
| Protecting Cap | KASK08 |
| Thread Fixing Bore (K) | M12 |
| Width of Inner Ring B (mm) | 49.2 |
| Bore Diameter (D) (mm) | 40 |
| Distance Fixing Bore (J) (mm) | 88.9 |
| Housing | SHE08 |
| Bearing Designation | GYE40-XL-KRR-B |
| Berat (Kg) | 1.5 |
| Tanggal Produk Terdaftar | 06 May 2024 |
| Terakhir Diperbaharui | 27 January 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Plummer block housing units RSHEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, R seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
