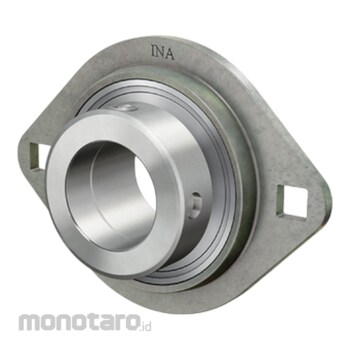

INA Flanged Housing Unit RAT Type RAT40XL 1pc
Rp579.900
Persediaan
Spesifikasi Produk
| Model Number | RAT40XL |
|---|---|
| Unit | 1pc |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Flange Width (H) (mm) | 147.5 |
| Load Carrying Capacity (Housing) (C0r G) (N) | 7K |
| Load Carrying Capacity (Housing) (Cg) (N) | 7000 |
| Fixing Square (N) (mm) | 13.5 |
| Height Housing (A) (mm) | 11.5 |
| Thickness of Flange (S1) (mm) | 3.5 |
| Flange Thickness (S) (mm) | 3.5 |
| Shoulder Diameter Housing (V) (mm) | 90 |
| Bore Diameter (D) (mm) | 40 |
| Fatigue Load Limit, Radial (Cur) (N) | 1030 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 34500 |
| Basic Static Load Rating, Radial (C0r) (N) | 19800 |
| Flange Width (L) (mm) | 100 |
| Height Flange (H) (mm) | 151 |
| Total Height Unit (U) (mm) | 36.2 |
| Distance Fixing Bore (J) (mm) | 119 |
| Number of Screwing Holes (n) | 2 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 06 May 2024 |
| Terakhir Diperbaharui | 27 January 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Housing units RAT, two-bolt flanged housing units, sheet steel, eccentric locking collar, P seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
